Ai-Thinker ESP-32S WIFI Bluetooth Dual Antenna Module ESP 32 ESP-32 Smallest BLE Beacon Chip Module

Overview :

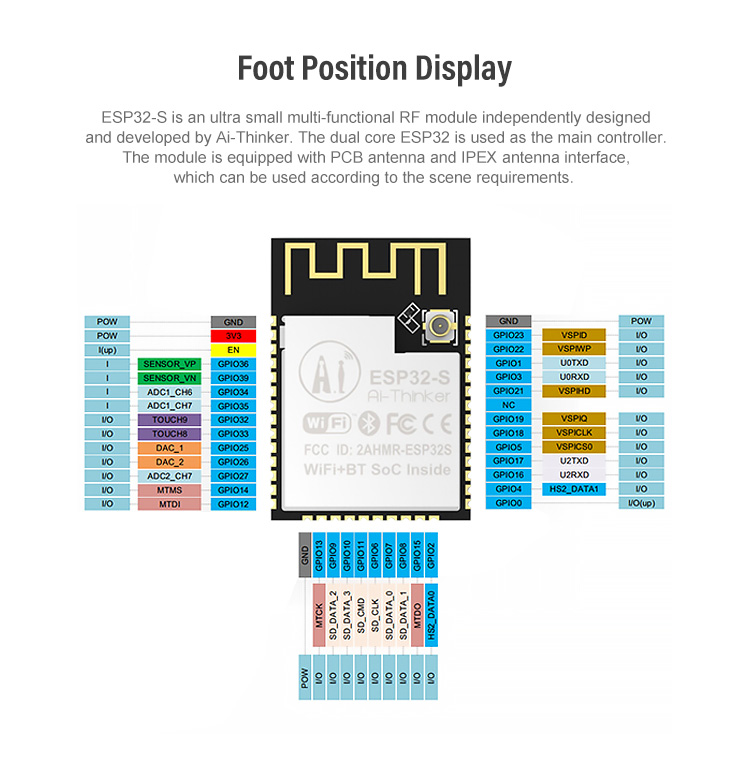

ESP32-S is an ultra-small multifunctional RF module independently designed and developed by Ai-Thinker.

It uses dual-core ESP32 as the main control, and the module is matched with the PCB on-board antenna and the IPEX antenna to be used according to the scene requirements.

It uses ESP32 chip, integrated Wi-Fi, traditional bluetooth and bluetooth low energy (BLE Beacon), with 2 high-performance 32-bit LX6 CPU, 7-stage pipeline architecture, main frequency adjustment range 80MHz to 240MHz, on-chip Sensor: Hall sensor, temperature sensor, etc.

It is fully compliant with WiFi 802.11b/g/n/e/i and Bluetooth 4.2 standards. It can be used as a master mode to build a stand-alone network controller, or it can be used as a slave to other host MCUs to add networking capabilities to existing devices.

Specification :

Model	ESP32-S
CPU	Xtensa 32-bit LX6 Dual Core Processor
ROM	520 KByte SRAM RTC 16 KByte SRAM
Package	SMD-38
Size	25.5183(±0.2)mm
SPI Flash	32Mbit default
Communication Interface	SD / UART / SPI / SDIO / I2C / PWM / I2S / IR / GPIO / ADC / DAC / Capacitance Touch Sensors
GPIO	22
Audio Frequency	SVCD / SBC
Series Rate	115200 bps default
Frequency Band	2.4Ghz
Onboard Clock	40 MHz Crystal
Antenna Type	Onboard PCB antenna / IPEX pedestal
WiFi 802.11	b/g/n/d/e/i/k/r (802.11n, Speeds up to 150Mbps)
Bluetooth	V4.2 BR/EDR and BLE standard, NZIF receiver with -98dbm sensitivity, Class-1,Class-2 and Class-3 transmitter
Supply Voltage	2.7-3.6V, typical 3.3V
Current	Operating Current: Average 80mA Supply Current: 500mA Min
