Ai-Thinker ESP-12E ESP8266 Wifi Module ESP8266 Serial IOT WIFI Wireless Module Wireless Transceiver Module

Ask Lasest Price
Brand Name :	Ai-Thinker
Model Number :	ESP-12E
Certification :	FCC/CE/IC/REACH/RoHS
Payment Terms :	Paypal ,Western Union or T/T, MoneyGram
Supply Ability :	10000 pcs/month
Delivery Time :	3-5 days after confirm your payment for sample order or according to your order quantity

Add to Cart

Product Details
Company Profile

Ai-Thinker ESP-12E ESP8266 Wifi Module ESP8266 Serial IOT WIFI Wireless Module Wireless Transceiver Module

Features :

· Compatible with ESP-12
· Communication interface voltage: 3.3V
· IO Port Package: Both SMD and Inline package are available, and the pin pitch is 2.0mm.
· Antenna Type: Built-in PCB antenna is available
· Wireless Network Mode: station / soft AP / Soft AP + station
· Wireless criteria: 802.11 b / g / n
· Wi-Fi @ 2.4 GHz, support for WPA / WPA2 security mode
· It is very easy to develop projects with AT command

Specification :

Model	ESP-12E	Description
Package	SMD-22	/
Size	24163mm	±0.2mm
SPI Flash	32Mbit	Default
Interface	/	UART / GPIO / ADC / PWM
IO	9	/

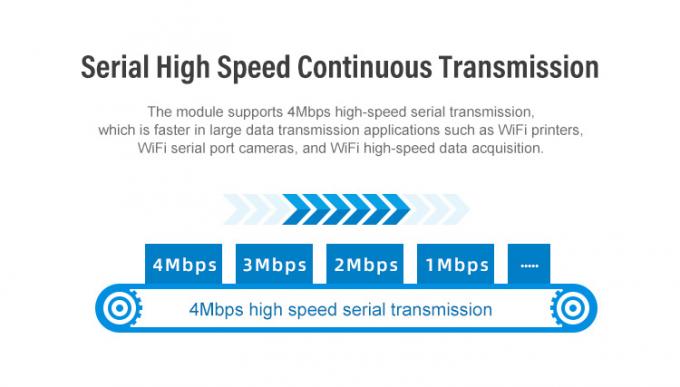

Series Rate	4608000bps	Support 300~4608000bps, 115200bps default
Frequency Band	2.4GHz	2412~2484MHz
Antenna	Onboard	Onboard PCB Antenna, Transmission distance is about 100 meters
Transmit Power	/	802.11b: 16±2dBm; 802.11g: 16±2dBm; 802.11n:16±2dBm
Security	/	WEP / WPA-PSK / WPA2-PSK
Operating Temperature	Industrial Grade	-20℃~85℃
Supply Voltage	3.3V	3.0~3.6V, current>500mA
AT	Built-in intelligent processing	Can be read by AT command

Applications :

· Home automation,
· Sensor networks,
· Industrial wireless control
